Three-Phase Transformer Line

Adjust line voltages according to the requirements of the machines or installations to be powered. Excellent cost-benefit ratio: compact and suitable when the installation does not require isolation between primary and secondary windings.

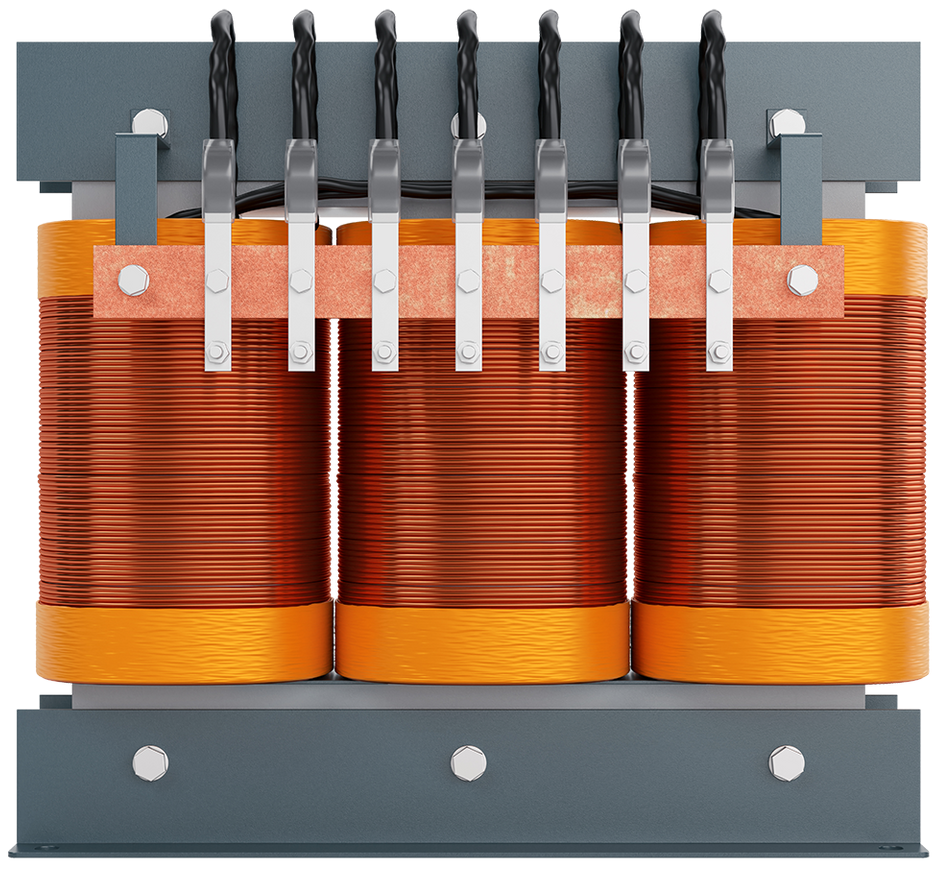

Autotransformer Line - KTA

Ideal for industrial applications, especially those requiring compact dimensions. Offers excellent cost-effectiveness when the installation does not require isolation between primary and secondary windings.

Request your quote

PROTECTION LEVEL

It is a classification that indicates the level of protection provided by electrical equipment against the intrusion of foreign solid bodies (such as dust and objects) and the ingress of water.

IP23

They are suitable for use in indoor and sheltered environments. They offer protection against water droplets up to a maximum angle of 15°, and against solid objects with a diameter greater than 12.05 mm.
Button

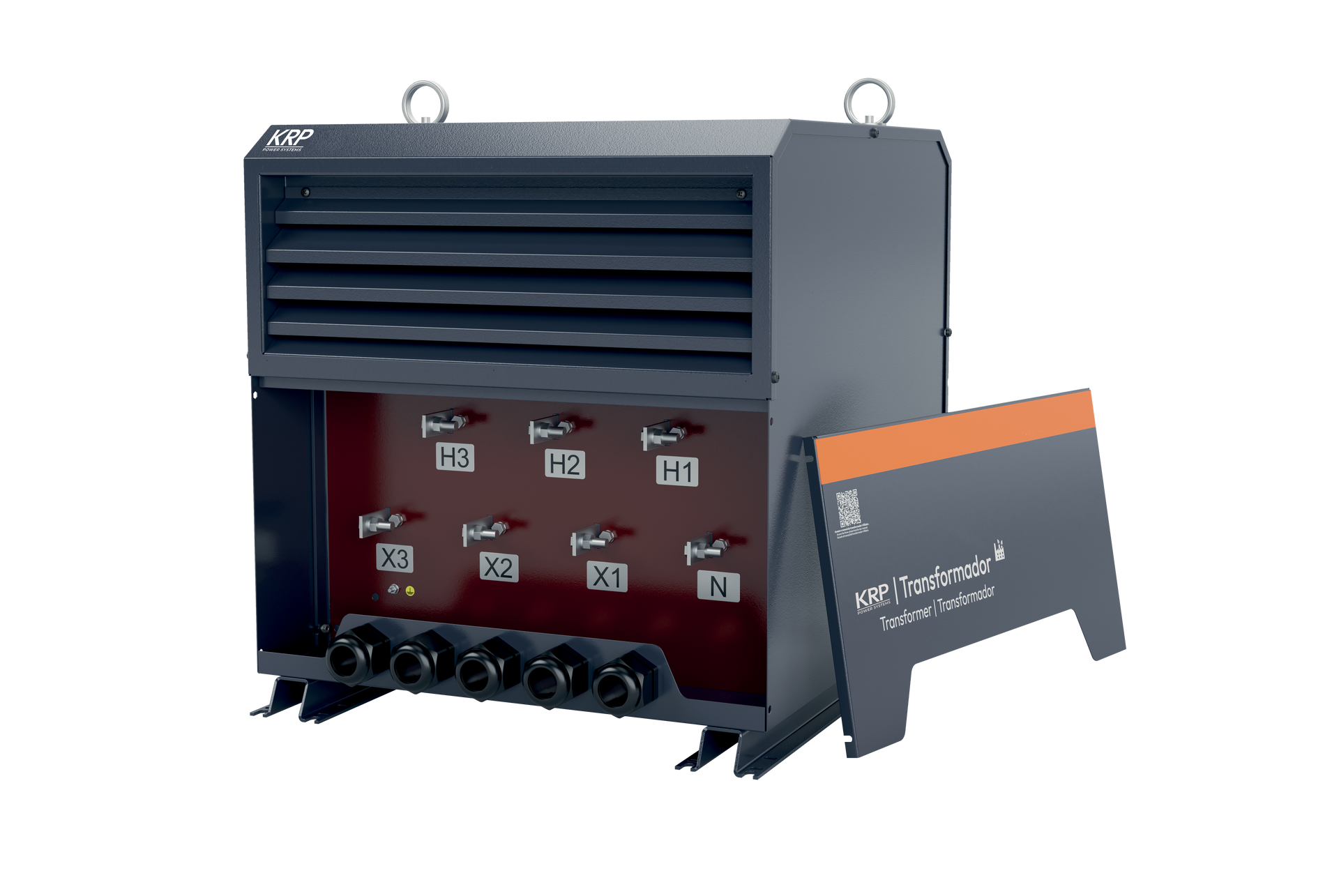

IP54

They can be used in outdoor environments where they may be subject to adverse weather conditions, such as rain and dust.
Button

IP65

They can be used outdoors. They are fully protected against the entry of solid objects such as dust and water jets.
Button

  • TECHNICAL INFORMATION

    Three-Phase Autotransformer Voltages: Standardized primary and secondary voltages, or as required by the application; Insulation: Dry type; Protection degree: Open - IP00, with metal enclosure - IP23, IP54 or IP65; Standard connection: Primary and secondary in star configuration with accessible neutral; Insulation voltage: 1.1 kV; Frequency: 50 or 60 Hz; Temperature class: F - 155 °C; Temperature rise: 100 °C; Ambient temperature: Up to 40 °C; Overvoltage limit: 5% above specified; Standardization: Identified with serial number and individually tested. Note: Kraper also customizes the manufacture of three-phase transformers according to the characteristics required by the customer's project.
