Solar Line
Aiming to reduce unnecessary energy consumption in photovoltaic solar systems, the no-load losses in this product line are minimized, meeting total power demand during peak periods and reducing consumption when there is no generation, ensuring system efficiency and avoiding unnecessary expenses.
technical information
Medium voltage for solar power lines
Electrostatic shielding;
Power: up to 20,000 kVA
Construction method: Dry application with high-quality epoxy resin.
Voltage class: 15kV¹
Standard connection: primary delta and secondary star with accessible neutral;
Thermal class of insulating materials: F (155 °C)
Conductor material: Aluminum
Protection rating: IP00²
Cooling Mode: AN (natural)
Maximum ambient temperature: 40 °C
Maximum altitude: 1000 meters above sea level
Average temperature rise of the windings: 100 °C
Standards: ABNT NBR 5356:11
Accessories: Casters for movement, lifting eyes, grounding connection terminals, temperature control relays.
¹ Voltage class 24.2 and 36.2kV available upon request
² Protection rating IP23 or IP54 available upon request.
* Other technical product specifications are available upon request.
Optional:
Microprocessor-based temperature controller
Forced Ventilation
Other optional extras available upon request.
technical information
Three-phase autotransformer
Insulation: dry;
Degree of protection: open - IP00, with metal enclosure - IP21, IP23, IP54 or IP65;
Standard connection: primary and secondary in star configuration with accessible neutral;
Insulation voltage: 1.1 kV;
Frequency: 60 Hz;
Temperature class: F - 155 °C;
Temperature rise: 100 °C;
Ambient temperature: up to 40 °C;
Overvoltage limit: 5% above the specified value;
Identified by serial number and tested individually;
Other design parameters may be considered when the application so requires.
We service both autotransformers and isolation transformers in this product line.
technical information

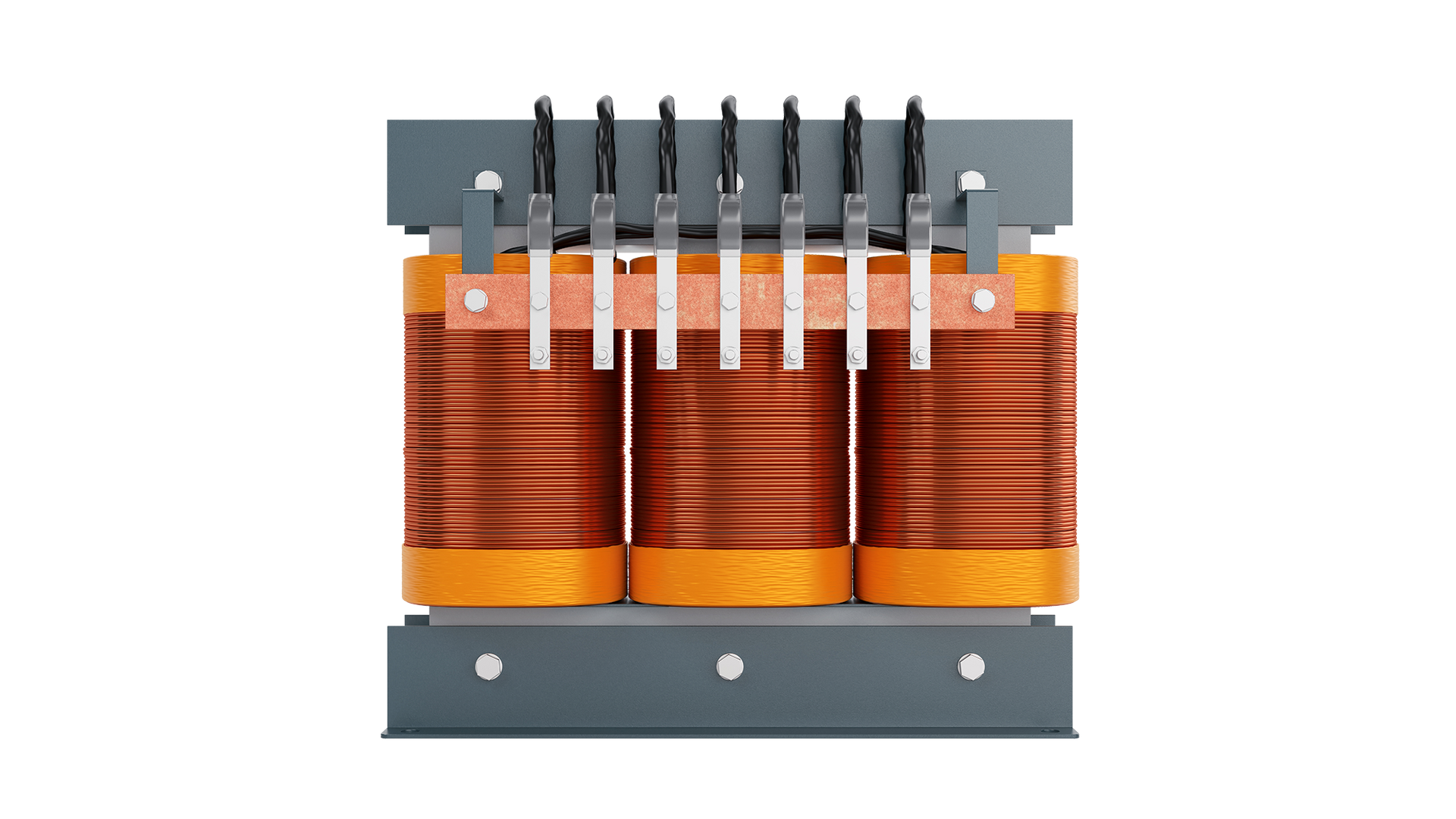

Three-phase isolation transformer
Voltages: standardized primary and secondary (380/220) or as required by the application;
Insulation: dry;
Degree of protection: open - IP00, with metal enclosure - IP21, IP23, IP54 or IP65;
Standard connection: primary and secondary in star configuration with accessible neutral, or as required by the application;
Insulation voltage: 1.1 kV;
Frequency: 60 Hz;
Temperature class: F - 155 °C;
Temperature rise: 100 °C;
Ambient temperature: up to 40 °C;
Overvoltage limit: 5% above the specified value;
Identified by serial number and tested individually;
Other design parameters may be considered when the application so requires.
We service both autotransformers and isolation transformers in this product line.
